Bond Length Distribution¶
Purpose¶
This benchmark evaluates the ability of machine-learned interatomic potentials (MLIP) to accurately model the equilibrium bond lengths of small organic molecules during molecular dynamics (MD) simulations. This is an important test to understand whether the MLIP respects basic chemistry throughout simulations. Accurate prediction of bond length is crucial for capturing the structural and electronic properties of many pharmaceutically and chemically relevant compounds.
Description¶
For each molecule in the dataset, the benchmark performs an MD simulation using the MLIP model in the NVT ensemble at 300 K for 1,000,000 steps (1ns), leveraging the jax-md, as integrated via the mlip library, starting from a reference geometry. Throughout the trajectory, the positions of the bond atoms are tracked, and their deviation from a the reference bond length of the QM optimized starting structure is calculated. The average deviation over the trajectory provides a direct measure of the MLIP’s ability to maintain bond lengths under thermal fluctuations, enabling quantitative comparison to reference data or other models.

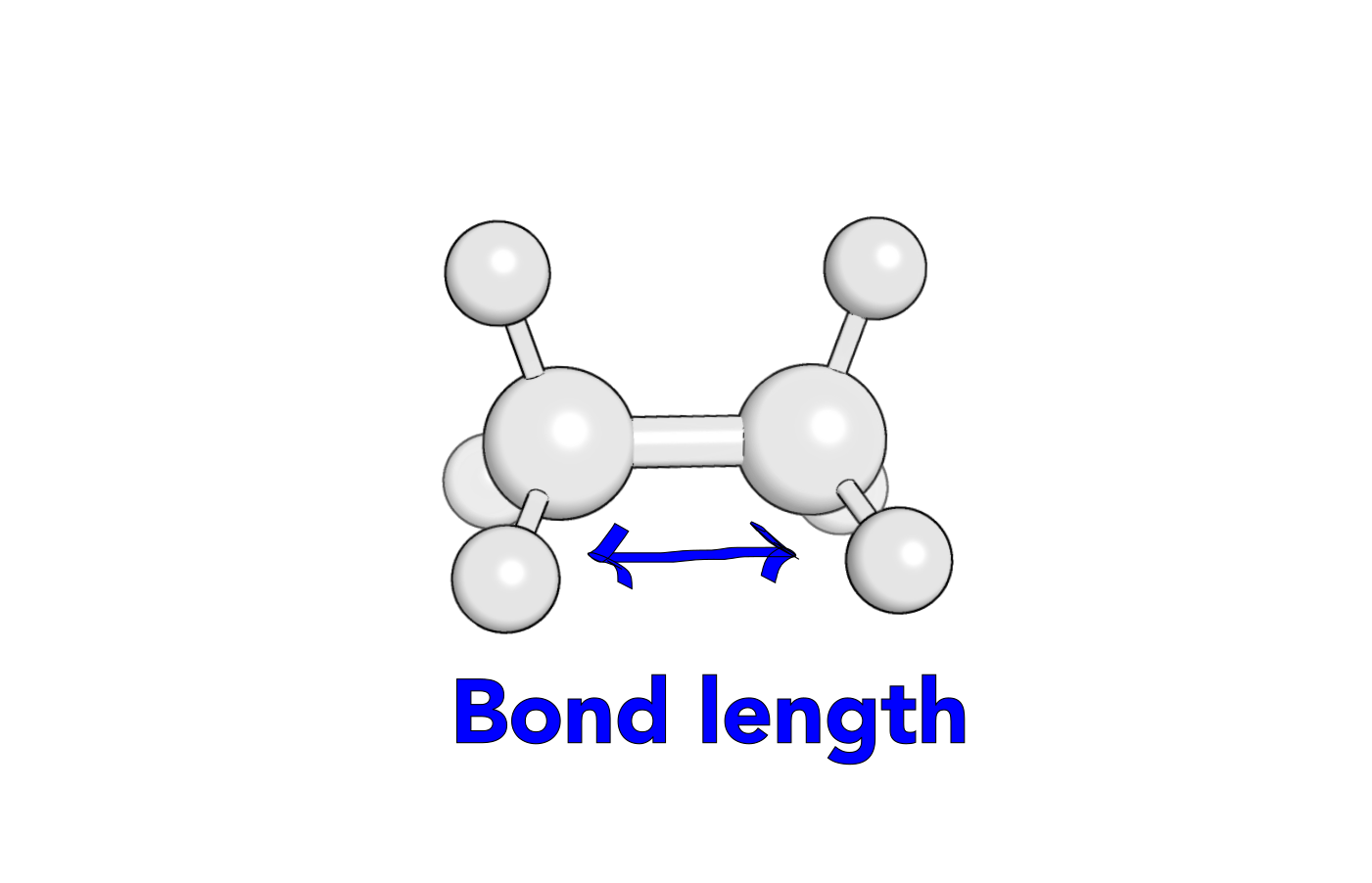

Ethane CC bond¶
Dataset¶
The dataset is composed of one structure per tested bond type: C-C, C=C, C#C, C-N, C-O, C=O and C-F. The molecular structures are selected from the QM9 [1] dataset.
Interpretation¶
While fluctuations around the equilibrium bond length are expected during a simulation, the average bond length should be very close to the equilibrium bond length from the reference geometry. The average deviation should be as low as possible.
